PBYR2045CTB Rectifier diodes Schottky barrier

PBYR2045CTB Description

Philips Semiconductors Product specification Rectifier diodes Schottky barrier .
Dual, common cathode schottky rectifier diodes in a conventional leaded plastic package and a surface mounting plastic package.

PBYR2045CTB Features

* Low forward volt drop
* Fast switching
* Reverse surge capability
* High thermal cycling performance
* Low thermal resistance PBYR2045CT, PBYR2045CTB series SYMBOL QUICK REFERENCE DATA VR = 40 V/ 45 V a1 1 k 2 a2 3 IO(AV) = 20 A VF ≤ 0.57 V GENERAL DE

PBYR2045CTB Applications

* These products are not designed for use in life support appliances, devices or systems where malfunction of these products can be reasonably expected to result in personal injury. Philips customers using or selling these products for use in such applications do so at their own risk and agree to full

📥 Download Datasheet

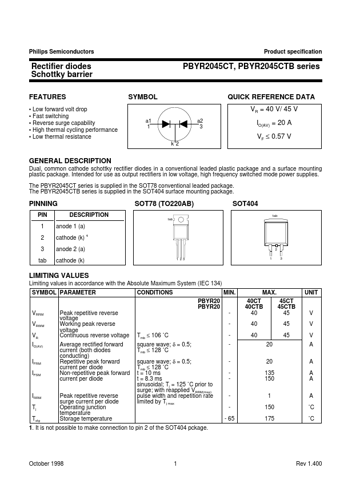

Preview of PBYR2045CTB PDF
datasheet Preview Page 2 datasheet Preview Page 3
