PBYR2045CTF Rectifier diodes Schottky barrier

PBYR2045CTF Description

Philips Semiconductors Product specification Rectifier diodes Schottky barrier .
Dual, common cathode schottky rectifier diodes in a plastic envelope with electrically isolated mounting tab.

PBYR2045CTF Features

* Low forward volt drop
* Fast switching
* Reverse surge capability
* High thermal cycling performance
* Isolated mounting tab PBYR2045CTF, PBYR2045CTX series SYMBOL QUICK REFERENCE DATA VR = 40 V/ 45 V IO(AV) = 20 A VF ≤ 0.57V a1 1 k 2 a2 3 GENERAL DESC

PBYR2045CTF Applications

* These products are not designed for use in life support appliances, devices or systems where malfunction of these products can be reasonably expected to result in personal injury. Philips customers using or selling these products for use in such applications do so at their own risk and agree to full

📥 Download Datasheet

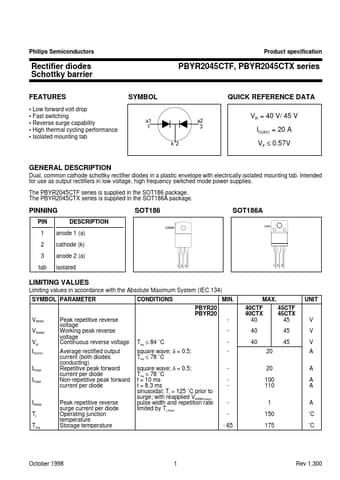

Preview of PBYR2045CTF PDF
datasheet Preview Page 2 datasheet Preview Page 3
