PCA9420 - Power management

Product Overview

NXP

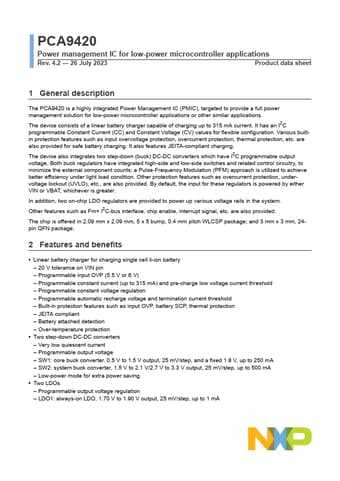

PCA9420 Power management by NXP - Datasheet Preview — Datasheet preview – PCA9420

Datasheet Details

Part number	PCA9420
Manufacturer	NXP
File Size	1.11 MB
Description	Power management
Datasheet	PCA9420 Datasheet
Additional preview pages of the PCA9420 datasheet.

Product details

Description

The PCA9420 is a highly integrated Power Management IC (PMIC), targeted to provide a full power management solution for low-power microcontroller applications or other similar applications.

Features

Linear battery charger for charging single cell li-ion battery.
20 V tolerance on VIN pin.
Programmable input OVP (5.5 V or 6 V).
Programmable constant current (up to 315 mA) and pre-charge low voltage current threshold.
Programmable constant voltage regulation.
Programmable automatic recharge voltage and termination current threshold.
Built-in protection features such as input OVP, battery SCP, thermal protection.
JEITA co.
