PCA9306-Q1 Datasheet - Texas Instruments

PCA9306-Q1 - SMBus Voltage-Level Translator

This dual bidirectional I2C and SMBus voltage-level translator, with an enable (EN) input, is operational from 1.2-V to 3.3-V VREF1 and 1.8-V to 5.5-V VREF2.

The PCA9306-Q1 allows bidirectional voltage translations between 1.2 V and 5 V, without the use of a direction pin.

The low ON-state resistan

PCA9306-Q1 Features

* AEC-Q100 qualified for automotive applications

* Temperature grade 2:

* 40°C to 105°C, TA

* HBM ESD classification level H2

* CDM ESD classification level C4B

* 2-Bit bidirectional translator for SDA and SCL lines in mixed-mode I2C applications

PCA9306-Q1-etcTI.pdf

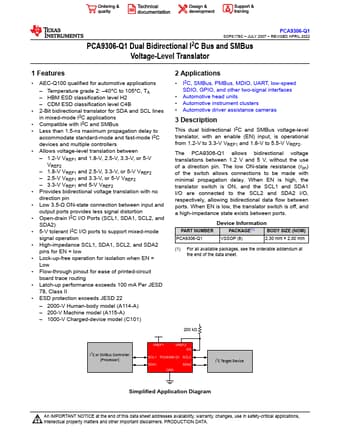

Preview of PCA9306-Q1 PDF
PCA9306-Q1 Datasheet Preview Page 2 PCA9306-Q1 Datasheet Preview Page 3

Datasheet Details

Part number:

PCA9306-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.21 MB

Description:

Smbus voltage-level translator.
