PCA9518

Expandable Five-Channel I2C HUB

PCA9518 Features

* 1 Expandable Five-Channel Bidirectional Buffer

* 400-kHz Fast I2C Bus

* Operating VCC Range of 3 V to 3.6 V

* 5-V Tolerant I2C and Enable Input Pins to Support Mixed-Mode Signal Operation

* Active-High Individual Repeater Enable Inputs

* Open-Drain In

PCA9518 General Description

The PCA9518 is an expandable five-channel bidirectional buffer for I2C and SMBus applications. The I2C protocol requires a maximum bus capacitance of 400 pF, which is derived from the number of devices on the I2C bus and the bus length. The PCA9518 overcomes this restriction by separating and buffer.

PCA9518 Datasheet (1.34 MB)

Preview of PCA9518 PDF

Datasheet Details

Part number:

PCA9518

Manufacturer:

Texas Instruments ↗

File Size:

1.34 MB

Description:

Expandable five-channel i2c hub.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community PCA9518 SCPS132C

* JUNE 2006

* REVISED JUNE .

📁 Related Datasheet

PCA9510 Hot swappable I2C and SMBus bus buffer (NXP)

PCA9510A Hot swappable I2C-bus and SMBus bus buffer (NXP Semiconductors)

PCA9511 Hot swappable I2C and SMBus bus buffer (NXP)

PCA9511A Hot swappable I2C-bus and SMBus bus buffer (NXP Semiconductors)

PCA9512 Level shifting hot swappable I2C and SMBus buffer (NXP)

PCA9512A Level shifting hot swappable I2C-bus and SMBus bus buffer (NXP)

PCA9512B Level shifting hot swappable I2C-bus and SMBus bus buffer (NXP)

PCA9513 Hot swappable I2C and SMBus bus buffer (Philips)

PCA9513A Hot swappable I2C-bus and SMBus bus buffer (NXP Semiconductors)

PCA9514 Hot swappable I2C and SMBus bus buffer (Philips)

TAGS

PCA9518 Expandable Five-Channel I2C HUB Texas Instruments

Image Gallery

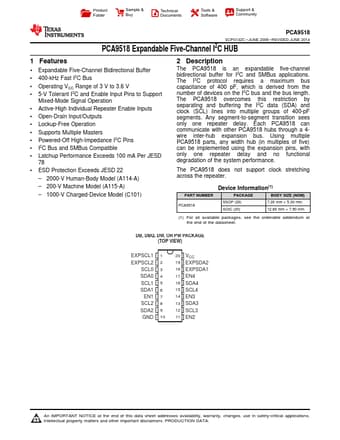

PCA9518 Datasheet Preview Page 2 PCA9518 Datasheet Preview Page 3
