PCA9534A Datasheet, Expander, Texas Instruments

PCA9534A Features

• Expander
• 1 Low Standby Current Consumption of 1 μA Max
• I2C to Parallel Port Expander
• Open-Drain Active-Low Interrupt Output
• Operating Power-Supply Voltage

PDF File Details

Part number:

PCA9534A

Manufacturer:

Texas Instruments ↗

File Size:

2.15MB

Download:

📄 Datasheet

Description:

Remote 8-bit i2c and smbus low-power i/o expander. This 8-bit I/O expander for the two-line bidirectional bus (I2C) is designed for 2.3-V to 5.5-V VCC operation. It provides general-pu

PCA9534A Application

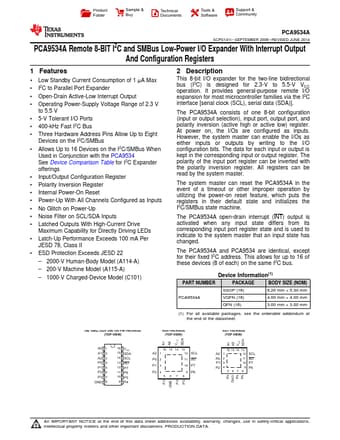

• Applications intellectual property matters and other important disclaimers. PRODUCTION DATA. PCA9534A SCPS141I
    – SEPTEMBER 2006
