PCA9515A - Dual Bidirectional I2C Bus and SMBus Repeater

Datasheet Summary

Description

This dual bidirectional I2C buffer is operational at 2.3V to 3.6-V VCC.

The PCA9515A is a BiCMOS integrated circuit intended for I2C bus and SMBus systems applications.

Features

  • 1 Two-Channel Bidirectional Buffers.
  • I2C Bus and SMBus Compatible.
  • Active-High Repeater-Enable Input.
  • Open-Drain I2C I/O.
  • 5.5-V Tolerant I2C I/O and Enable Input Support Mixed-Mode Signal Operation.
  • Lockup-Free Operation.
  • Accommodates Standard Mode and Fast Mode I2C Devices and Multiple Masters.
  • Powered-Off High-Impedance I2C Pins.
  • Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II.
  • ESD Protection Ex.

📥 Download Datasheet

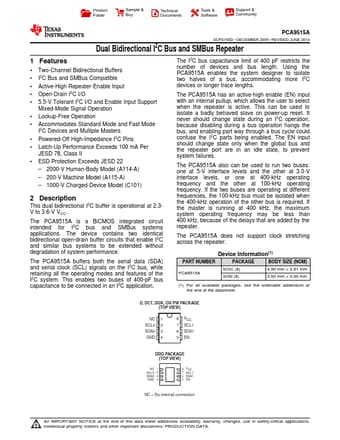

Datasheet preview – PCA9515A
