PCA9515B - Dual Bidirectional I2C Bus and SMBus Repeater

Datasheet Summary

Description

The PCA9515B is a BiCMOS dual bidirectional buffer integrated circuit intended for I2C bus and SMBus applications.

The device contains two identical bidirectional open-drain buffer circuits that enables I2C and similar bus systems to be extended (or add slaves) without degrading system performance.

Features

  • 1 Two-Channel Bidirectional Buffers.
  • I2C Bus and SMBus Compatible.
  • Support for I2C Standard Mode (100-kHz) and Fast Mode (400-kHz).
  • Active-High Repeater-Enable Input.
  • Open-Drain I2C Input and Output.
  • 5.5-V Tolerant I2C Input and Output and Enable Input Support Mixed-Mode Signal Operation.
  • Lockup-Free Operation.
  • Accommodates Standard Mode, Fast Mode I2C Devices, and Multiple Masters.
  • Supports Arbitration and Clock St.

📥 Download Datasheet

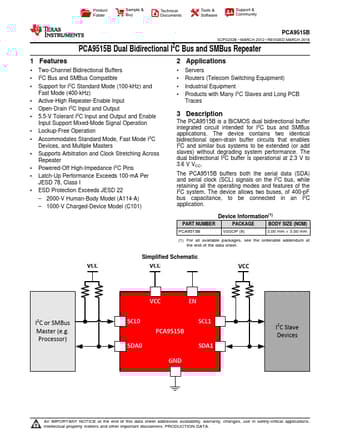

Datasheet preview – PCA9515B

Datasheet Details

Part number PCA9515B
Manufacturer Texas Instruments
File Size 875.26 KB
Description Dual Bidirectional I2C Bus and SMBus Repeater
