PCF1175C - 4-digit duplex LCD car clock

Datasheet Summary

Description

The PCF1175C is a single chip, 4.19 MHz CMOS car clock circuit providing hours, minutes and seconds functions.

It is designed to drive a 4-digit duplex liquid crystal display (LCD).

Features

  • Internal voltage regulator is electrically programmable for various LCD voltages.
  • Time calibration is electrically programmable (no trimming capacitor required).
  • LCD voltage adjusts with temperature for good contrast.
  • 4.19 MHz oscillator.
  • 12-hour or 24-hour mode.
  • Operating ambient temperature:.
  • 40 to +85 °C.
  • 28-lead plastic SMD (SO28).
  • 1 Hz set mode.

📥 Download Datasheet

Datasheet preview – PCF1175C

Datasheet Details

Part number PCF1175C
Manufacturer NXP
File Size 132.51 KB
Description 4-digit duplex LCD car clock
Datasheet download datasheet PCF1175C Datasheet
Additional preview pages of the PCF1175C datasheet.

📁 Similar Datasheet

  • PCF1100 - (PCF0xx0) CMOS Gate Arrays (Mullard)
  • PCF10N12L - N-Channel MOSFET (General Electric Solid State)
  • PCF1206 - Precision Thin Film Nichrome Chip Resistors (TT electronics)
  • PCF1210 - Precision Thin Film Nichrome Chip Resistors (TT electronics)
  • PCF1251 - Micropower DC Voltage Detector (Signetics)
  • PCF15N05 - N-Channel Enhancement Mode Power Field Effect Transistor Chip (General Electric Solid State)
  • PCF15N05L - N-Channel Enhancement Mode Power Field Effect Transistor Chip (General Electric Solid State)
  • PCF18N08 - N-Channel MOSFET (General Electric Solid State)
  • PCF18N08L - N-Channel MOSFET (General Electric Solid State)
  • PCF1A100MCL1GB - ALUMINUM ELECTROLYTIC CAPACITORS (Nichicon)
Other Datasheets by NXP
  • PCF1171C - 4-digit LCD car clock
  • PCF1172C - 31/2-digit LCD car clock
  • PCF1174C - 4-digit static LCD car clock
  • PCF1178C - 4-digit duplex LCD car clock
  • PCF1179C - 4-digit duplex LCD car clock
  • PCF1252-0 - Threshold detector and reset generator
  • PCF1252-1 - Threshold detector and reset generator
  • PCF1252-2 - Threshold detector and reset generator

Full PDF Text Transcription

Click to expand full text

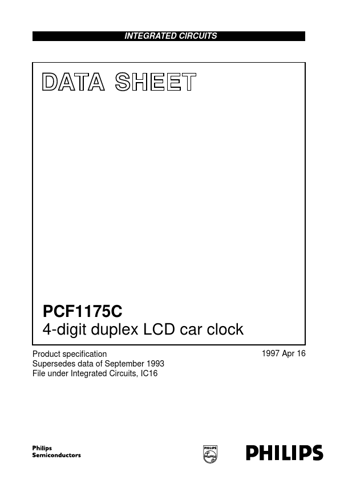

INTEGRATED CIRCUITS DATA SHEET PCF1175C 4-digit duplex LCD car clock Product specification Supersedes data of September 1993 File under Integrated Circuits, IC16 1997 Apr 16 Philips Semiconductors Product specification 4-digit duplex LCD car clock FEATURES • Internal voltage regulator is electrically programmable for various LCD voltages • Time calibration is electrically programmable (no trimming capacitor required) • LCD voltage adjusts with temperature for good contrast • 4.19 MHz oscillator • 12-hour or 24-hour mode • Operating ambient temperature: −40 to +85 °C • 28-lead plastic SMD (SO28) • 1 Hz set mode. ORDERING INFORMATION TYPE NUMBER PCF1175CT PCF1175CU PCF1175CU/10 Notes 1. See Fig.1 and Chapter “Package outline” for pin layout and package details. 2.
