PCF1179C - 4-digit duplex LCD car clock

Datasheet Summary

Description

The PCF1179C is a single chip, 4.19 MHz car clock circuit providing hours, minutes, and seconds functions.

It is designed to drive a 4-digit duplex liquid crystal display (LCD).

Two external single-pole, single-throw push buttons accomplish all time setting functions.

Features

  • Internal voltage regulator is electrically programmable for various LCD voltages.
  • Time calibration is electrically programmable (no trimming capacitor required).
  • LCD voltage adjusts with temperature for a good contrast.
  • 4.19 MHz oscillator.
  • 12-hour or 24-hour mode.
  • Operating ambient temperature: 40 C to +85 C.
  • 28-lead plastic SMD (SO28).
  • 4 Hz set mode. 3. Ordering information Table 1. Ordering information Type number Package Name PCF1179CT SO28.

📥 Download Datasheet

Datasheet preview – PCF1179C

Datasheet Details

Part number PCF1179C
Manufacturer NXP
File Size 204.57 KB
Description 4-digit duplex LCD car clock
Datasheet download datasheet PCF1179C Datasheet
Additional preview pages of the PCF1179C datasheet.

📁 Similar Datasheet

  • PCF1100 - (PCF0xx0) CMOS Gate Arrays (Mullard)
  • PCF10N12L - N-Channel MOSFET (General Electric Solid State)
  • PCF1206 - Precision Thin Film Nichrome Chip Resistors (TT electronics)
  • PCF1210 - Precision Thin Film Nichrome Chip Resistors (TT electronics)
  • PCF1251 - Micropower DC Voltage Detector (Signetics)
  • PCF15N05 - N-Channel Enhancement Mode Power Field Effect Transistor Chip (General Electric Solid State)
  • PCF15N05L - N-Channel Enhancement Mode Power Field Effect Transistor Chip (General Electric Solid State)
  • PCF18N08 - N-Channel MOSFET (General Electric Solid State)
  • PCF18N08L - N-Channel MOSFET (General Electric Solid State)
  • PCF1A100MCL1GB - ALUMINUM ELECTROLYTIC CAPACITORS (Nichicon)
Other Datasheets by NXP
  • PCF1171C - 4-digit LCD car clock
  • PCF1172C - 31/2-digit LCD car clock
  • PCF1174C - 4-digit static LCD car clock
  • PCF1175C - 4-digit duplex LCD car clock
  • PCF1178C - 4-digit duplex LCD car clock
  • PCF1252-0 - Threshold detector and reset generator
  • PCF1252-1 - Threshold detector and reset generator
  • PCF1252-2 - Threshold detector and reset generator

Full PDF Text Transcription

Click to expand full text

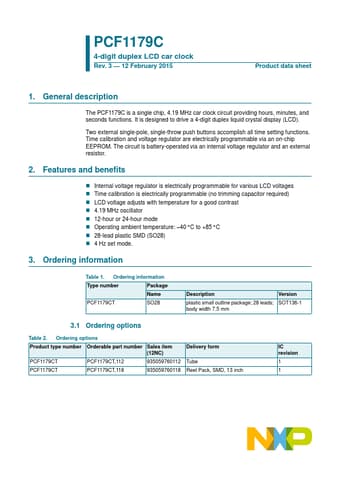

PCF1179C 4-digit duplex LCD car clock Rev. 3 — 12 February 2015 Product data sheet 1. General description The PCF1179C is a single chip, 4.19 MHz car clock circuit providing hours, minutes, and seconds functions. It is designed to drive a 4-digit duplex liquid crystal display (LCD). Two external single-pole, single-throw push buttons accomplish all time setting functions. Time calibration and voltage regulator are electrically programmable via an on-chip EEPROM. The circuit is battery-operated via an internal voltage regulator and an external resistor. 2.
