PCF85063BTL

Tiny Real-Time Clock/calendar

PCF85063BTL Features

* Provides year, month, day, weekday, hours, minutes, and seconds based on a 32.768 kHz quartz crystal

* Clock operating voltage: 0.9 V to 5.5 V

* Low current; typical 0.22 A at VDD = 3.3 V and Tamb = 25 C

* 3 line SPI-bus with a maximum data rate of 7 Mbit/s

* Programmable clo

PCF85063BTL General Description

The PCF85063BTL is a CMOS1 Real-Time Clock (RTC) and calendar optimized for low power consumption. An offset register allows fine-tuning of the clock. All addresses and data are transferred serially via a Serial Peripheral Interface (SPI-bus) with a maximum data rate of 7 Mbit/s. The register addres.

PCF85063BTL Datasheet (396.39 KB)

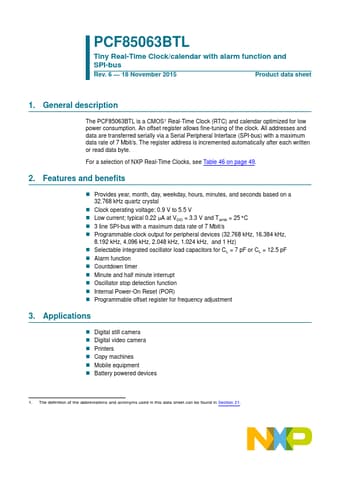

Preview of PCF85063BTL PDF

Datasheet Details

Part number:

PCF85063BTL

Manufacturer:

NXP ↗

File Size:

396.39 KB

Description:

Tiny real-time clock/calendar.
PCF85063BTL Tiny Real-Time Clock/calendar with alarm function and SPI-bus Rev. 6

* 18 November 2015 Product data sheet 1. General descript.
