PCK2001 - 14.318-150 MHz I2C 1:18 Clock Buffer

PCK2001 Description

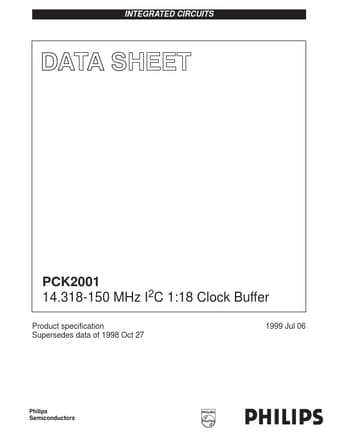

INTEGRATED CIRCUITS PCK2001 14.318-150 MHz I2C 1:18 Clock Buffer Product specification Supersedes data of 1998 Oct 27 1999 Jul 06 Philips Semiconduc.
The PCK2001 is a 1. 18 fanout buffer used for 133/100 MHz CPU, 66/33 MHz PCI, 14.

PCK2001 Features

* HIGH speed, LOW noise non-inverting 1
* 18 buffer
* Typically used to support four SDRAM DIMMs
* Multiple VDD, VSS pins for noise reduction
* 3.3V operation
* Separate 3-State pin for testing
* ESD protection exceeds 2000V per Standard 801.2

PCK2001 Applications

* All clock outputs meet Intel’s drive, rise/fall time, accuracy, and skew requirements. An I2C interface is included to allow each output to be enabled/disabled individually. An output disabled via the I2C interface will be held in the LOW state. In addition, there is an OE input which 3-States all
