PCK0G102MCO1GS CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS

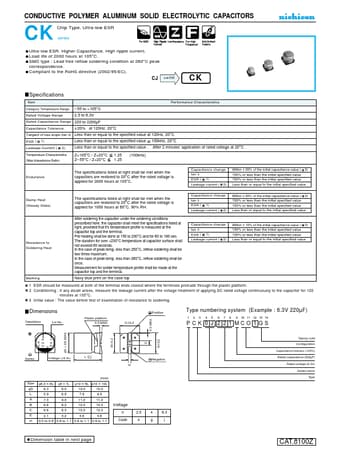

CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS CK Chip Type, Ultra-low ESR series Ultra-low ESR, Higher Capacitance, High ripple current. Load life of 2000 hours at 105°C. SMD type : Lead free reflow soldering condition at 260°C peak correspondence. Compliant to the RoHS directive (2002/95/EC). CJ Low ESR CK Specifications Item Performance Characteristics Category Temperature Range 55 to +105°C Rated Voltage Range 2.5 to 6.3V Rated Capacitance Range 220 to 2200µF .

PCK0E391MCO1GS-Nichicon.pdf

PCK0G102MCO1GS Datasheet Preview — This datasheet PDF includes multiple part numbers: PCK0G102MCO1GS, PCK0E391MCO1GS. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PCK0G102MCO1GS, PCK0E391MCO1GS

Manufacturer:

Nichicon

File Size:

44.46 KB

Description:

Conductive polymer aluminum solid electrolytic capacitors.

Note:

This datasheet PDF includes multiple part numbers: PCK0G102MCO1GS, PCK0E391MCO1GS.
Please refer to the document for exact specifications by model.
