PEMD10 Datasheet, Transistors, NXP

PEMD10 Features

• Transistors
• 300 mW total power dissipation
• Very small 1.6 × 1.2 mm ultra thin package
• Excellent coplanarity due to straight leads
• Replaces two SC-75/SC-89 pa

PDF File Details

Part number:

PEMD10

Manufacturer:

NXP ↗

File Size:

924.44kb

Download:

📄 Datasheet

Description:

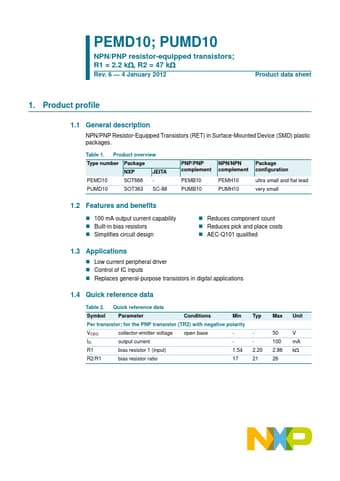

Npn/pnp resistor-equipped transistors. NPN/PNP resistor-equipped transistors in a SOT666 plastic package. TR1 handbook, halfpage PEMD10 QUICK REFERENCE DATA SYMBOL VCEO I

PEMD10 Application

• Applications
• General purpose switching and amplification
• Inverter and interface circuits
• Circuit driver. DESCRIPTION N
