PEMD16 Datasheet, Transistors, NXP

PEMD16 Features

• Transistors
• Built-in bias resistors
• Simplifies circuit design
• Reduces component count
• Reduces pick and place cost 1.3 Applications
• Low current per

PDF File Details

Part number:

PEMD16

Manufacturer:

NXP ↗

File Size:

83.88kb

Download:

📄 Datasheet

Description:

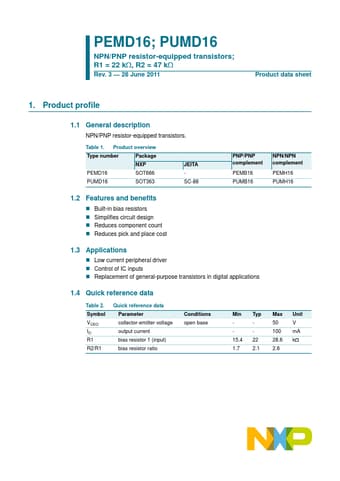

Npn/pnp resistor-equipped transistors. NPN/PNP resistor-equipped transistors. Table 1. Product overview Type number Package NXP PEMD16 SOT666 PUMD16 SOT363 JEITA S

PEMD16 Application

• Applications
• Low current peripheral driver
• Control of IC inputs
• Replacement of general-purpose transistors in digital
