PEMH1 Datasheet, Transistors, NXP

PEMH1 Features

• Transistors
• 100 mA output current capability
• Built-in bias resistors
• Simplifies circuit design
• Reduces component count
• Reduces pick and place cost

PDF File Details

Part number:

PEMH1

Manufacturer:

NXP ↗

File Size:

588.33kb

Download:

📄 Datasheet

Description:

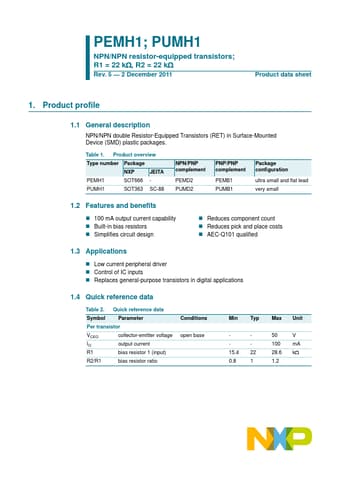

Npn/npn resistor-equipped transistors. NPN/NPN double Resistor-Equipped Transistors (RET) in Surface-Mounted Device (SMD) plastic packages. Table 1. Product overview Type

PEMH1 Application

• Applications
• Low current peripheral driver
• Control of IC inputs
• Replaces general-purpose transistors in digital applic
