PESD15VL2BT - Low capacitance double bidirectional ESD protection diodes

Product Overview

NXP

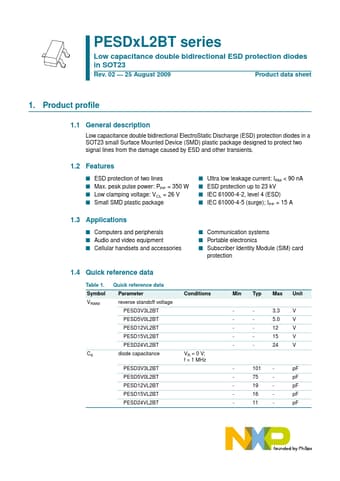

PESD15VL2BT Low capacitance double bidirectional ESD protection diodes by NXP - Datasheet Preview — Datasheet preview – PESD15VL2BT

Datasheet Details

Part number	PESD15VL2BT
Manufacturer	NXP
File Size	172.34 KB
Description	Low capacitance double bidirectional ESD protection diodes
Datasheet	PESD15VL2BT Datasheet
Note	This datasheet PDF includes multiple part numbers: PESD15VL2BT, PESD5V0L2BT. Please refer to the document for exact specifications by model.
Additional preview pages of the PESD15VL2BT datasheet.

Product details

Description

Low capacitance double bidirectional ElectroStatic Discharge (ESD) protection diodes in a SOT23 small Surface Mounted Device (SMD) plastic package designed to protect two signal lines from the damage caused by ESD and other transients.

Features

I ESD protection of two lines I Max. peak pulse power: PPP = 350 W I Low clamping voltage: VCL = 26 V I Small SMD plastic package I Ultra low leakage current: IRM < 90 nA I ESD protection up to 23 kV I IEC 61000-4-2, level 4 (ESD) I IEC 61000-4-5 (surge); IPP = 15 A 1.3.
