PESD5V0C1BSF Datasheet, Diode, NXP

PESD5V0C1BSF Features

  • Diode
  • Bidirectional ESD protection of one line
  • Extremely low diode capacitance Cd = 0.2 pF
  • ESD protection up to ±20 kV according to IEC 61000-4-2
  • Ultra

PDF File Details

Part number:

PESD5V0C1BSF

Manufacturer:

NXP ↗

File Size:

180.50kb

Download:

📄 Datasheet

Description:

Ultra low capacitance bidirectional esd protection diode. Ultra low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode, part of the TrEOS Protection family. This device

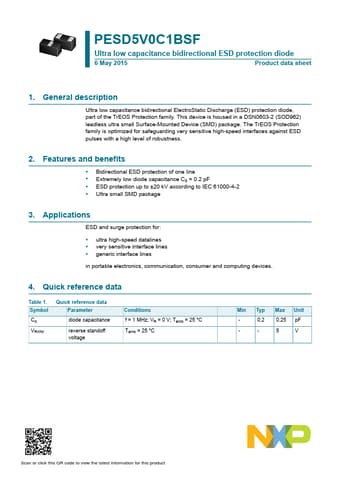

Datasheet Preview: PESD5V0C1BSF 📥 Download PDF (180.50kb)
Page 2 of PESD5V0C1BSF Page 3 of PESD5V0C1BSF

PESD5V0C1BSF Application

  • Applications ESD and surge protection for:
  • ultra high-speed datalines
  • very sensitive interface lines
  • generic interface
