PH4148 - High-speed diodes

Description

The 1N4148 and 1N4448 are high-speed switching diodes fabricated in planar technology, and encapsulated in hermetically sealed leaded glass SOD27 (DO-35) packages.

Features

  • Hermetically sealed leaded glass SOD27 (DO-35) package.
  • High switching speed: max. 4 ns.
  • General.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PH400N16 Diode Nihon Inter Electronics
PH400N8 Diode Nihon Inter Electronics
PH402G pH Converter Manual YOKOGAWA
PH406466 QUAD 10/100Base Supporting AutoMdix funtion Transformer YCL
PH4330L N-Channel MOSFET NXP Semiconductors

Other Datasheets by NXP Semiconductors

Part Number Description
PH4025L N-Channel MOSFET
PH4030AL N-Channel MOSFET
PH4830L N-Channel MOSFET

Full PDF Text Transcription

Click to expand full text

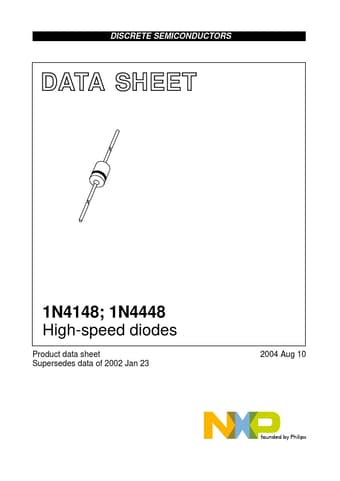

DISCRETE SEMICONDUCTORS DATA SHEET M3D176 1N4148; 1N4448 High-speed diodes Product data sheet Supersedes data of 2002 Jan 23 2004 Aug 10 NXP Semiconductors High-speed diodes Product data sheet 1N4148; 1N4448 FEATURES • Hermetically sealed leaded glass SOD27 (DO-35) package • High switching speed: max. 4 ns • General application • Continuous reverse voltage: max. 100 V • Repetitive peak reverse voltage: max. 100 V • Repetitive peak forward current: max. 450 mA. APPLICATIONS • High-speed switching. handbook, halfpagke a MAM246 The diodes are type branded. Fig.1 Simplified outline (SOD27; DO-35) and symbol. DESCRIPTION The 1N4148 and 1N4448 are high-speed switching diodes fabricated in planar technology, and encapsulated in hermetically sealed leaded glass SOD27 (DO-35) packages.
