PHP45NQ11T Datasheet - NXP

PHP45NQ11T N-channel TrenchMOS standard level FET

PHP45NQ11T Features

* s Fast switching s Low on-state resistance. 1.3 Applications s DC-to-DC converters s Switched-mode power supplies. 1.4 Quick reference data s VDS ≤ 105 V s Ptot ≤ 150 W s ID ≤ 47 A s RDSon ≤ 25 mΩ. 2. Pinning information Table 1: Pinning - SOT78 (TO-220AB), simplified outline and symbol Simplified

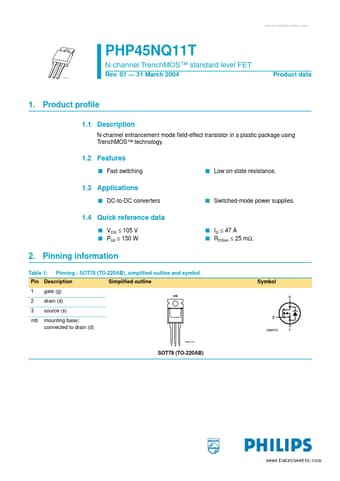

PHP45NQ11T Datasheet (123.51 KB)

Preview of PHP45NQ11T PDF

Datasheet Details

Part number:

PHP45NQ11T

Manufacturer:

NXP ↗

File Size:

123.51 KB

Description:

N-channel trenchmos standard level fet.
