* s Standard level threshold s Very low on-state resistance. 1.3 Applications s Motors, lamps, solenoids s DC-to-DC converters s Uninterruptible power supplies s General industrial applications. 1.4 Quick reference data s VDS ≤ 55 V s Ptot ≤ 200 W s ID ≤ 75 A s RDSon ≤ 7.1 mΩ. 2. Pinning informatio
PHP119NQ06T Datasheet (132.25 KB)
PHP119NQ06T
NXP ↗ Semiconductors
132.25 KB
N-channel trenchmos standard level fet.

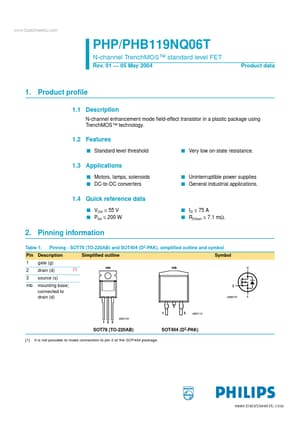

www.DataSheet4U.com PHP/PHB119NQ06T N-channel TrenchMOS™ standard level FET Rev. 01 05 May 2004 Product data 1. Product profile 1.1 Descrip.
