PHP109 - P-channel enhancement mode MOS transistor

Datasheet Summary

Description

P-channel enhancement mode MOS transistor in an 8-pin plastic SO8 (SOT96-1) package.

CAUTION The device is supplied in an antistatic package.

The gate-source input must be protected against static discharge during transport or handling.

Features

  • High-speed switching.
  • No secondary breakdown.
  • Very low on-resistance.

📥 Download Datasheet

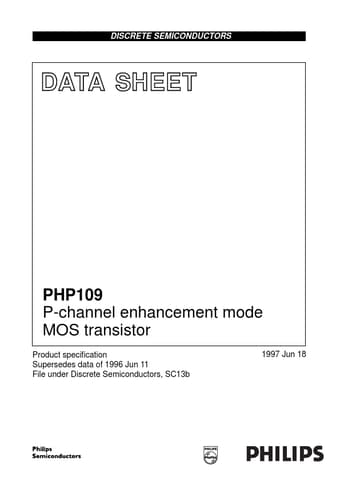

Datasheet preview – PHP109

Datasheet Details

Part number PHP109
Manufacturer NXP
File Size 101.00 KB
Description P-channel enhancement mode MOS transistor
Datasheet download datasheet PHP109 Datasheet
Additional preview pages of the PHP109 datasheet.

📁 Similar Datasheet

  • PHP101NQ04T - N-channel TrenchMOS standard level FET (NXP Semiconductors)
  • PHP110NQ06LT - N-channel TrenchMOS logic level FET (NXP Semiconductors)
  • PHP110NQ08LT - N-channel TrenchMOS logic level FET (NXP Semiconductors)
  • PHP110NQ08T - N-channel TrenchMOS standard level FET (NXP Semiconductors)
  • PHP119NQ06T - N-channel TrenchMOS standard level FET (NXP Semiconductors)
  • PHP120 - 7/500 & 15/000 Watt TVS Module (Semtech Corporation)
  • PHP129NQ04LT - N-channel TrenchMOS logic level FET (NXP Semiconductors)
  • PHP12N50E - PowerMOS transistors (Philips)
  • PHP152NQ03LT - TrenchMOS logic level FET (NXP Semiconductors)
  • PHP160NQ08T - N-channel TrenchMOS standard level FET (NXP Semiconductors)
Other Datasheets by NXP

Full PDF Text Transcription

Click to expand full text
DISCRETE SEMICONDUCTORS DATA SHEET PHP109 P-channel enhancement mode MOS transistor Product specification Supersedes data of 1996 Jun 11 File under Discrete Semiconductors, SC13b 1997 Jun 18 Philips Semiconductors Product specification P-channel enhancement mode MOS transistor FEATURES • High-speed switching • No secondary breakdown • Very low on-resistance. APPLICATIONS • Motor and actuator driver • Power management • Synchronized rectification. DESCRIPTION P-channel enhancement mode MOS transistor in an 8-pin plastic SO8 (SOT96-1) package. CAUTION The device is supplied in an antistatic package. The gate-source input must be protected against static discharge during transport or handling. handbook, 8 halfpage PHP109 PINNING - SO8 (SOT96-1) PIN 1 2 3 4 5 6 7 8 SYMBOL n.c.
