PHP10N40 - PowerMOS transistor

Datasheet Summary

Description

N-channel enhancement mode field-effect power transistor in a plastic envelope featuring high avalanche energy capability, stable blocking voltage, fast switching and high thermal cycling performance with low thermal resistance.

📥 Download Datasheet

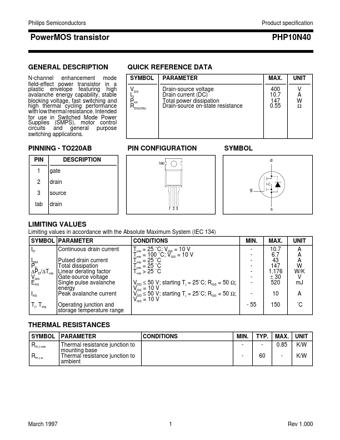

Datasheet preview – PHP10N40

Datasheet Details

Part number PHP10N40
Manufacturer NXP
File Size 54.30 KB
Description PowerMOS transistor
Datasheet download datasheet PHP10N40 Datasheet
