PHP10N40E - PowerMOS transistors Avalanche energy rated

Datasheet Summary

Description

N-channel, enhancement mode field-effect power transistor, intended for use in off-line switched mode power supplies, T.V.

and computer monitor power supplies, d.c.

to d.c.

Features

  • Repetitive Avalanche Rated.
  • Fast switching.
  • Stable off-state characteristics.
  • High thermal cycling performance.
  • Low thermal resistance PHP10N60E SYMBOL d QUICK.

📥 Download Datasheet

Datasheet preview – PHP10N40E

Datasheet Details

Part number PHP10N40E
Manufacturer NXP
File Size 115.19 KB
Description PowerMOS transistors Avalanche energy rated
Datasheet download datasheet PHP10N40E Datasheet
Additional preview pages of the PHP10N40E datasheet.

📁 Similar Datasheet

  • PHP101NQ04T - N-channel TrenchMOS standard level FET (NXP Semiconductors)
  • PHP110NQ06LT - N-channel TrenchMOS logic level FET (NXP Semiconductors)
  • PHP110NQ08LT - N-channel TrenchMOS logic level FET (NXP Semiconductors)
  • PHP110NQ08T - N-channel TrenchMOS standard level FET (NXP Semiconductors)
  • PHP119NQ06T - N-channel TrenchMOS standard level FET (NXP Semiconductors)
  • PHP120 - 7/500 & 15/000 Watt TVS Module (Semtech Corporation)
  • PHP129NQ04LT - N-channel TrenchMOS logic level FET (NXP Semiconductors)
  • PHP12N50E - PowerMOS transistors (Philips)
  • PHP152NQ03LT - TrenchMOS logic level FET (NXP Semiconductors)
  • PHP160NQ08T - N-channel TrenchMOS standard level FET (NXP Semiconductors)
Other Datasheets by NXP
  • PHP10N40 - PowerMOS transistor
  • PHP10N10E - PowerMOS transistor
  • PHP10N60E - PowerMOS transistors Avalanche energy rated
  • PHP101NQ03LT - TrenchMOS logic level FET
  • PHP1025 - P-channel enhancement mode MOS transistor
  • PHP1035 - P-channel enhancement mode MOS transistor
  • PHP108NQ03LT - TrenchMOS logic level FET
  • PHP109 - P-channel enhancement mode MOS transistor

Full PDF Text Transcription

Click to expand full text

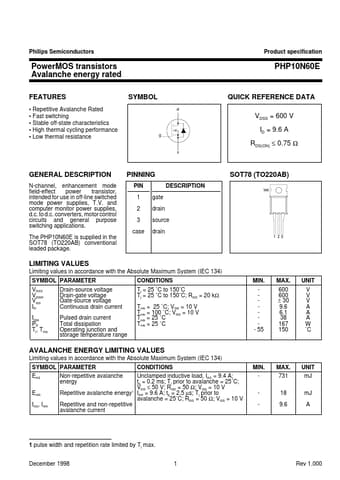

Philips Semiconductors Product specification PowerMOS transistors Avalanche energy rated FEATURES • Repetitive Avalanche Rated • Fast switching • Stable off-state characteristics • High thermal cycling performance • Low thermal resistance PHP10N60E SYMBOL d QUICK REFERENCE DATA VDSS = 600 V g ID = 9.6 A RDS(ON) ≤ 0.75 Ω s GENERAL DESCRIPTION N-channel, enhancement mode field-effect power transistor, intended for use in off-line switched mode power supplies, T.V. and computer monitor power supplies, d.c. to d.c. converters, motor control circuits and general purpose switching applications. The PHP10N60E is supplied in the SOT78 (TO220AB) conventional leaded package.
