PHP1025

P-channel enhancement mode MOS transistor

NXP

PHP1025 Features

* Very low RDSon at low threshold

* High-speed switching

* No secondary breakdown

* Direct interface to C-MOS, TTL, etc. APPLICATIONS

* Power management

* DC-DC converters

* General purpose switch. DESCRIPTION P-channel enhancement mode MOS tra

PHP1025 General Description

P-channel enhancement mode MOS transistor in an 8-pin SOT96-1 (SO8) SMD plastic package. CAUTION The device is supplied in an antistatic package. The gate-source input must be protected against static discharge during transport or handling. 1 Top view 4 MAM398 PHP1025 PINNING - SOT96-1 (SO8) PIN 1 .

PHP1025 Datasheet (51.88 KB)

PHP1025 Datasheet Preview — Preview of PHP1025 PDF

Datasheet Details

Part number:

PHP1025

Manufacturer:

NXP ↗

File Size:

51.88 KB

Description:

P-channel enhancement mode mos transistor.

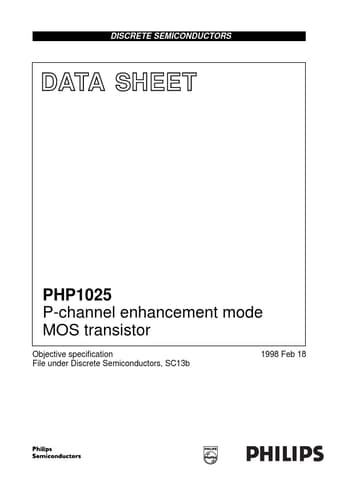

DISCRETE SEMICONDUCTORS DATA SHEET PHP1025 P-channel enhancement mode MOS transistor Objective speciﬁcation File under Discrete Semiconductors, SC13.
