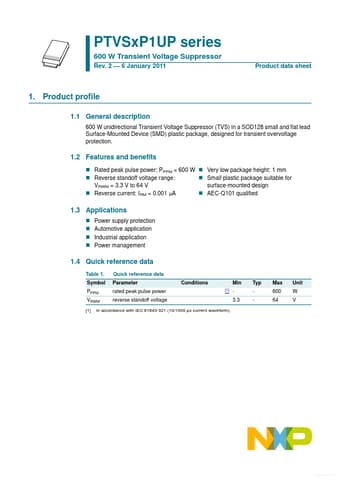

PTVS20VP1UP Datasheet - NXP

600 W Transient Voltage Suppressor

* Rated peak pulse power: PPPM = 600 W

* Very low package height: 1 mm

* Reverse standoff voltage range:

* Small plastic package suitable for VRWM = 3.3 V to 64 V surface-mounted design

* Reverse current: IRM = 0.001 μA

* AEC-Q101 qualified 1.3 Applic

PTVS20VP1UP

138.15 KB

600 w transient voltage suppressor.
