PTVS20VP1UTP, PTVS3V3P1UTP, High-temperature 600W Transient Voltage Suppressor

PTVSxP1UTP series High-temperature 600 W Transient Voltage Suppressor Rev.1 * 11 October 2011 Product data sheet 1.Product profile 1.1 .
600 W unidirectional Transient Voltage Suppressor (TVS) in a SOD128 small and flat lead Surface-Mounted Device (SMD) plastic package, designed for tra.

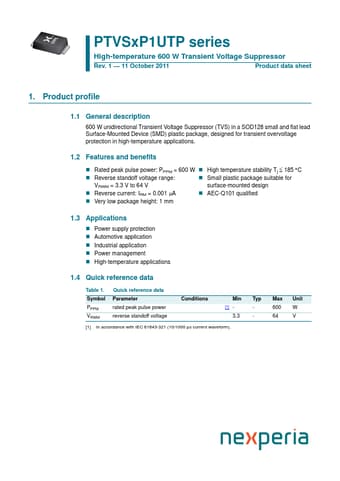

datasheet Preview Page 1 from Datasheet4u.com

PTVS3V3P1UTP-nexperia.pdf

PTVS20VP1UTP Datasheet Preview — This datasheet PDF includes multiple part numbers: PTVS20VP1UTP, PTVS3V3P1UTP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PTVS20VP1UTP, PTVS3V3P1UTP

Manufacturer:

nexperia ↗

File Size:

650.47 KB

Description:

High-temperature 600W Transient Voltage Suppressor

Note:

This datasheet PDF includes multiple part numbers: PTVS20VP1UTP, PTVS3V3P1UTP.
Please refer to the document for exact specifications by model.

Features

* Rated peak pulse power: PPPM = 600 W
* High temperature stability Tj  185 C
* Reverse standoff voltage range:
* Small plastic package suitable for VRWM = 3.3 V to 64 V
* Reverse current: IRM = 0.001 A
* Very low package height: 1 mm surface-mounted design
* AEC-
