PTVS2-076C-H Datasheet - BOURNS

High Current TVS Diodes

PTVS2-076C-H Features

* n 2 kA, 8/20 μs surge capability n Repetitive standoff voltage: 22 to 86 volts n Bidirectional TVS n Low clamping voltage under surge n Excellent performance over temperature n Surface mount DFN package n RoHS compliant

* and halogen free

* Applications n Protection against lightning str

PTVS2-076C-H General Description

UL File Number: E215609 Symbol Value Unit 22 26 29 VWM 43 58 V 66 76 86 IPPM 2 kA TOP -55 to +125 °C TS -55 to +150 °C Asia-Pacific: Tel: +886-2 2562-4117 * Email: asiacus@bourns.com EMEA: Tel: +36 88 885 877 * Email: eurocus@bourns.com The Americas: Tel: +1-9.

PTVS2-076C-H Datasheet (806.96 KB)

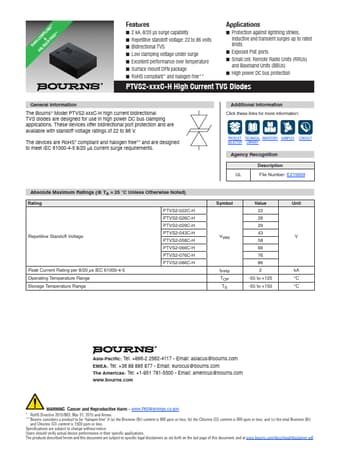

PTVS2-076C-H Datasheet Preview — Preview of PTVS2-076C-H PDF

Datasheet Details

Part number:

PTVS2-076C-H

Manufacturer:

BOURNS

File Size:

806.96 KB

Description:

High current tvs diodes.
