QN9020 Ultra low power Bluetooth

QN902x is an ultra low power, high performance and highly integrated Bluetooth LE solution. It is used in Bluetooth Smart applications such as sports and fitness, human interface devices, and app-enabled smart accessories. It is specially designed for wearable electronics and can run on a small capa.

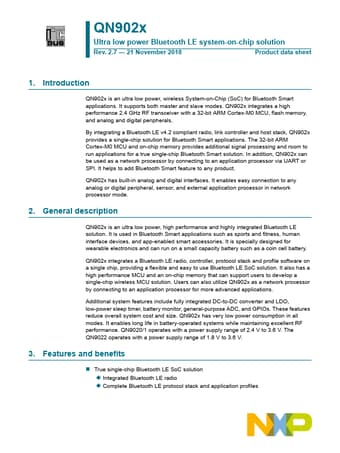

QN902x Ultra low power Bluetooth LE system-on-chip solution Rev. 2.7 21 November 2018 Product data sheet 1. Introduction QN902x is an ultra low power, wireless System-on-Chip (SoC) for Bluetooth Smart applications. It supports both master and slave modes. QN902x integrates a high performance 2.4 GHz RF transceiver with a 32-bit ARM Cortex-M0 MCU, flash memory, and analog and digital peripherals. By integrating a Bluetooth LE v4.2 compliant radio, link controller and host stack, QN9.

QN9020 Features

* True single-chip Bluetooth LE SoC solution

* Integrated Bluetooth LE radio

* Complete Bluetooth LE protocol stack and application profiles NXP Semiconductors QN902x Ultra low power Bluetooth LE system-on-chip solution QN902x Product data sheet

* Supports both master and slave m

QN9020 Datasheet (687.89 KB)
