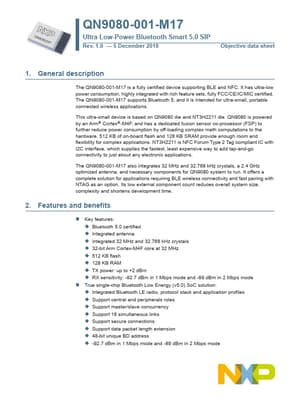

datasheet Preview Page 1 from Datasheet4u.com

QN9080-001-M17 Ultra Low-Power Bluetooth Smart-5.0 SIP

QN9080-001-M17 Ultra Low-Power Bluetooth Smart 5.0 SIP Rev.1.0 * 5 December 2018 Objective data sheet 1.General .
The QN9080-001-M17 is a fully certified device supporting BLE and NFC.

QN9080-001-M17-NXP.pdf

QN9080-001-M17 Datasheet Preview — Preview of QN9080-001-M17 PDF

Datasheet Details

Part number:

QN9080-001-M17

Manufacturer:

NXP ↗

File Size:

1.11 MB

Description:

Ultra Low-Power Bluetooth Smart-5.0 SIP

Features

* Key features:
* Bluetooth 5.0 certified
* Integrated antenna
* Integrated 32 MHz and 32.768 kHz crystals
* 32-bit Arm Cortex-M4F core at 32 MHz
* 512 KB flash
* 128 KB RAM
* TX power: up to +2 dBm
* RX sensitivity: -92.7 dBm in 1 Mbps mode and -89 dBm in 2 Mbps

Applications

* This ultra-small device is based on QN9080 die and NT3H2211 die. QN9080 is powered by an Arm Cortex-M4F, and has a dedicated fusion sensor co-processor (FSP) to further reduce power consumption by off-loading complex math computations to the hardware. 512 KB of on-board flash and 128 KB SRAM prov
