S1K SMA controlled avalanche rectifiers

S1K Description

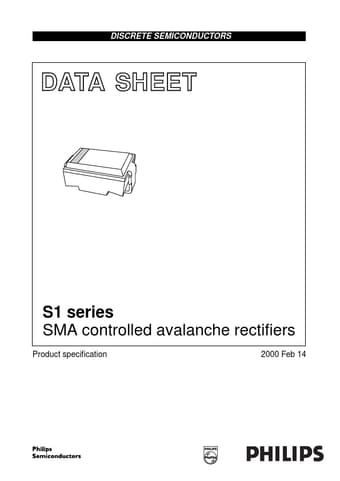

DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D168 S1 series SMA controlled avalanche rectifiers Product speciļ¬cation 2000 Feb 14 Philips Se.
DO-214AC surface mountable package with glass passivated chip.

S1K Features

* Glass passivated
* High maximum operating temperature

S1K Applications

* Low leakage current
* Excellent stability
* Guaranteed avalanche energy absorption capability
* UL 94V-O classified plastic package
* Shipped in 12 mm embossed tape
* Marking: cathode, date code, type code
* Easy pick and place. Top view olum

📥 Download Datasheet

Preview of S1K PDF
datasheet Preview Page 2 datasheet Preview Page 3
