S32K144 MCU

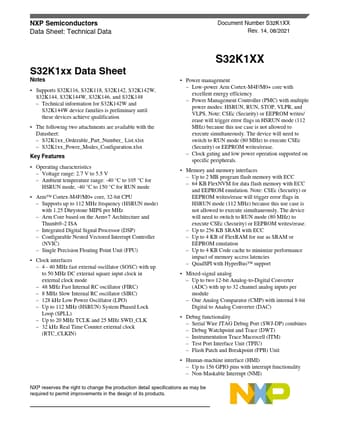

NXP Semiconductors Data Sheet: Technical Data Document Number S32K1XX Rev. 14, 08/2021 S32K1xx Data Sheet Notes Supports S32K116, S32K118, S32K142, S32K142W, S32K144, S32K144W, S32K146, and S32K148 Technical information for S32K142W and S32K144W device families is preliminary until these devices achieve qualification The following two attachments are available with the Datasheet: S32K1xx_Orderable_Part_Number_ List.xlsx S32K1xx_Power_Modes_Conf.

S32K144 Features

* Operating characteristics

* Voltage range: 2.7 V to 5.5 V

* Ambient temperature range: -40 °C to 105 °C for HSRUN mode, -40 °C to 150 °C for RUN mode

* Arm™ Cortex-M4F/M0+ core, 32-bit CPU

* Supports up to 112 MHz frequency (HSRUN mode) with 1.25 Dhrystone M
