S9KEAZN8AMTG, S9KEA8P44M48SF0 - 32-bit MCU

NXP

📥 Download Datasheet

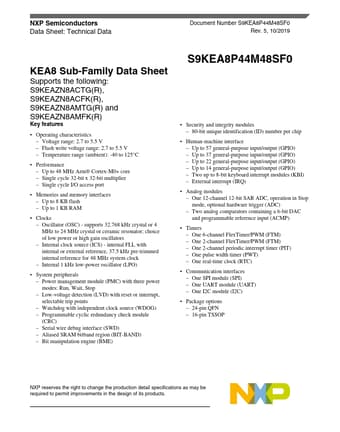

S9KEAZN8AMTG Datasheet Preview — This datasheet PDF includes multiple part numbers: S9KEAZN8AMTG, S9KEA8P44M48SF0. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	S9KEAZN8AMTG, S9KEA8P44M48SF0
Manufacturer	NXP
File Size	835.93 KB
Description	32-bit MCU
Datasheet	S9KEA8P44M48SF0-NXP.pdf
Note	This datasheet PDF includes multiple part numbers: S9KEAZN8AMTG, S9KEA8P44M48SF0. Please refer to the document for exact specifications by model.

S9KEAZN8AMTG Product details

Description

5 Peripheral operating requirements and behaviors 17 2.2 Format 3 5.1 Core modules 17 2.3 Fields3 5.1.1 SWD electricals 18 2.4 Example 4 5.2 External oscillator (OSC) and ICS characteristics19 3 Ratings4 5.3 NVM specifications 21 3.1 Thermal handling ratings 4 5.4 Analog22 3.2 Moisture handling ratings 4 5.4.1 ADC characteristics 22 3.3 ESD handling ratings 5 5.4.2 Analog comparator (ACMP) electricals24 3.4 Voltage and current operating ratings5 5.5 Communication interfaces 25

Features

Operating characteristics.
Voltage range: 2.7 to 5.5 V.
Flash write voltage range: 2.7 to 5.5 V.
Temperature range (ambient): -40 to 125°C.
Performance.
Up to 48 MHz Arm® Cortex-M0+ core.
Single cycle 32-bit x 32-bit multiplier.
Single cycle I/O access port.
Memories and memory interfaces.
Up to 8 KB flash.
Up to 1 KB RAM.
Clocks.
Oscillator (OSC) - supports 32.768 kHz crystal or.
