SAA5252

Line twenty-one acquisition and display LITOD

SAA5252 Features

* Complete ‘stand-alone’ Line 21 decoder in one package

* On-chip display RAM allowing full page Text mode

* Enhanced character display modes

* Full colour captions

* RGB interface for standard colour decoder ICs

* Automatic handling of Field 2 data

SAA5252 General Description

SAA5252 The SAA5252 (LITOD) is a single-chip CMOS device, which will acquire, decode and display Line 21 Closed Captioning data from a 525-line composite video signal. Operation as an On-Screen Display (OSD) device is also possible. Normal and line progressive scan modes are supported. MAX. 5.5 V.

SAA5252 Datasheet (203.24 KB)

Preview of SAA5252 PDF

Datasheet Details

Part number:

SAA5252

Manufacturer:

NXP ↗

File Size:

203.24 KB

Description:

Line twenty-one acquisition and display litod.

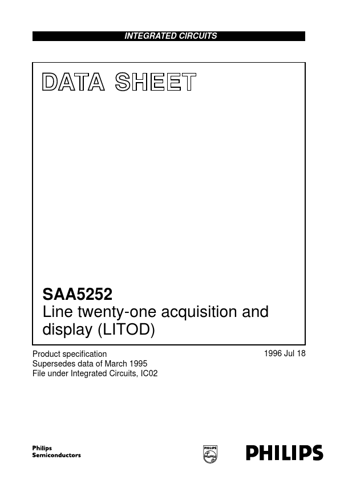

INTEGRATED CIRCUITS DATA SHEET SAA5252 Line twenty-one acquisition and display (LITOD) Product specification Supersedes data of March 1995 File under.
