SAA5244A - Integrated VIP and teletext decoder IVT1.1

SAA5244A Description

INTEGRATED CIRCUITS DATA SHEET SAA5191 Teletext video processor Preliminary speciļ¬cation File under Integrated Circuits, IC02 March 1991 Philips Se.
The SAA5191 is a bipolar integrated circuit that extracts teletext data from the video signal (CVBS), regenerates the teletext clock (TTC) and synchro.

SAA5244A Features

* Adaptive data slicer
* Crystal-controlled data clock regeneration with a bit rate of 6.9375 MHz
* Adaptive sync separator, horizontal phase detector and 13.5 MHz VCO to provide display phase locked loop (PLL)
* TV synchronization at teletext mode GENERAL DESCRIPTIO

📥 Download Datasheet

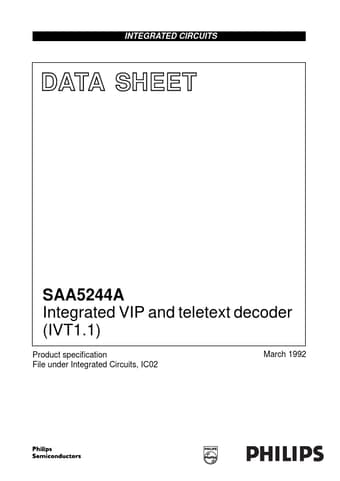

Preview of SAA5244A PDF
