SAA5290 - Economy teletext and TV microcontrollers

NXP

📥 Download Datasheet

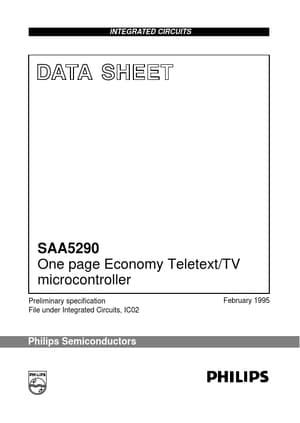

SAA5290 Datasheet Preview — Preview of SAA5290 PDF

Datasheet Details

Part number	SAA5290
Manufacturer	NXP
File Size	360.58 KB
Description	Economy teletext and TV microcontrollers
Datasheet	SAA5290_PhilipsSemiconductors.pdf

SAA5290 Product details

Description

DESCRIPTION SAA5290 The SAA5290 is a single-chip one page teletext decoder and television control microcontroller.The device will decode 625-line based World System Teletext transmissions and provides television control functions and On-Screen Display (OSD) functions.The teletext decoder hardware is a derivative of the SAA5254 (IVT1.1X), and the TV control functionality provided by an on-chip industrial standard 80C51 microcontroller.A single-page static RAM is included on-board providing a

Features

General.
Complete one page teletext decoder and TV microcontroller in a single 52-pin package.
Eastern European, Western European and Turkish language variants covered in one device.
Double size, double width and double height character capability for On-Screen Display (OSD).
Enhanced display features including meshing and shadowing.
Separate display and acquisition timing for increased flexibility.
Minimum peripheral component count.
