SAA7162E PCI Express based dual channel multistandard audio and video decoder

SAA7162E Description

SAA7162E PCI Express based dual channel multistandard audio and video decoder Rev.02 * 13 August 2007 Product short data sheet 1.General de.
The SAA7162E is a dual channel multistandard audio and video TV decoder with digital IF demodulator and PCI Express interface.

SAA7162E Features

* 2.1 Analog video acquisition I Twenty analog inputs; allowing multiple combinations of N Dual channel CVBS N Dual channel S-video N Dual channel Y/C N One channel RGB or Y-PB-PR (progressive or interlaced); able to handle standard deļ¬nition signals as well as HD0 N Dual channel low IF from an NXP Si

SAA7162E Applications

* I Eight video processing channels with automatic signal clamping and signal amplifying adjustment to a high quality 10-bit CMOS analog-to-digital converter results in a four-fold ITU-R BT.656 oversampled (54 MHz) video signal I AGC for the selected CVBS or S-video channel, or manually adjustable gai

📥 Download Datasheet

Preview of SAA7162E PDF

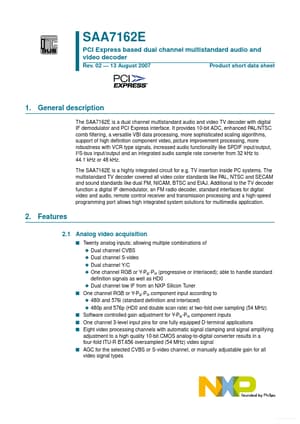

datasheet Preview Page 2 datasheet Preview Page 3
