SAA7167 - YUV-to-RGB Digital-to-Analog Converter DAC

Name: SAA7167
SKU: SAA7167-274317

NXP

📥 Download Datasheet

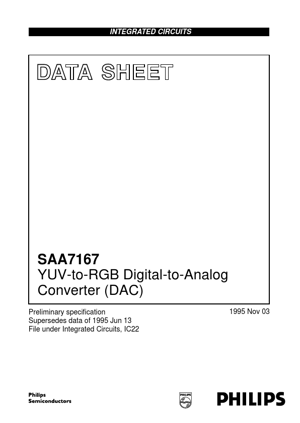

SAA7167 Datasheet Preview — Preview of SAA7167 PDF

Datasheet Details

Part number	SAA7167
Manufacturer	NXP
File Size	144.27 KB
Description	YUV-to-RGB Digital-to-Analog Converter DAC
Datasheet	SAA7167_PhilipsSemiconductors.pdf

SAA7167 Product details

Description

The SAA7167 is a mixed-mode designed IC containing a video data path, keying control block, analog mixer, and a QUICK REFERENCE DATA SYMBOL VDDD VDDA Tamb digital supply voltage analog supply voltage operating ambient temperature PARAMETER MIN.

Features

On-chip mixing of digital video data and analog RGB signals.
Supports video input format of YUV 4 : 2 : 2, 4 : 1 : 1, 2 : 1 : 1 andRGB 5 : 6 : 5.
Video input rate up to 50 MHz.
Allows for both binary and two’s complement video input data.
Triple 8-bit DACs for video output.
Built-in voltage output amplifier.
Provide keying control with external key and internal 8-bit, 2 × 8-bit and 3 × 8-bit pixel colour key.
Programmable v.
