SAA7326 - Digital servo processor and Compact Disc decoder with integrated DAC CD10

ORDERING INFORMATION QUICK REFERENCE DATA BLOCK DIAGRAM PINNING FUNCTIONAL DESCRIPTION Decoder part Principal operational modes of the decoder Decoding speed and crystal frequency Lock-to-disc mode Standby modes Crystal oscillator Data slicer and clock regenerator Demodulator Frame sync protection E

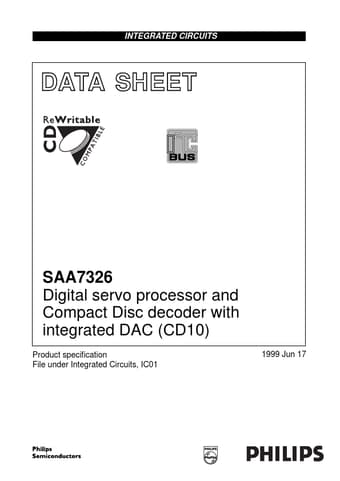

INTEGRATED CIRCUITS DATA SHEET SAA7326 Digital servo processor and Compact Disc decoder with integrated DAC (CD10) Product speciﬁcation File under Integrated Circuits, IC01 1999 Jun 17 Philips Semiconductors Product speciﬁcation Digital servo processor and Compact Disc decoder with integrated DAC (CD10) CONTENTS 1 2 3 4 5 6 7 7.1 7.1.1 7.1.2 7.1.3 7.1.4 7.2 7.3 7.4 7.4.1 7.4.2 7.5 7.5.1 7.5.2 7.5.3 7.6 7.6.1 7.7 7.7.1 7.7.2 7.7.3 7.7.4 7.7.5 7.8 7.8.1 7.8.2 7.9 7.9.1 7.10 7.11 7.12 7.13 7.1
