SAA7335 DSP

NXP

SAA7335 Description

INTEGRATED CIRCUITS DATA SHEET SAA7335 DSP for CD and DVD-ROM systems Preliminary speciﬁcation File under Integrated Circuits, IC01 1997 Aug 11 Phi.
This device is a high-end combined Compact Disc (CD) and Digital Versatile Disc (DVD) compatible decoding device.

SAA7335 Applications

* Designed for very high playback speeds
* Typical CD-ROM operation up to n = 12, DVD-ROM to n = 1.9, maximum rates (tbf)
* Matched filtering, quad-pass error correction (C1-C2-C1-C2), overspeed audio playback function included (up to 3 kbytes buffer)
* Lock-to-disc p

📥 Download Datasheet

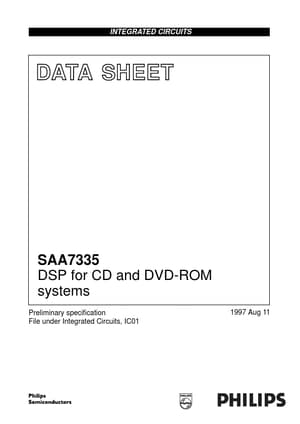

SAA7335 Datasheet Preview — Preview of SAA7335 PDF

Datasheet Details

Part number: SAA7335
Manufacturer: NXP ↗
File Size: 196.57 KB
Datasheet: SAA7335_PhilipsSemiconductors.pdf
Description: DSP
