SCC2698B - Enhanced octal universal asynchronous receiver/transmitter Octal UART

Name: SCC2698B
SKU: SCC2698B-611706

NXP

📥 Download Datasheet

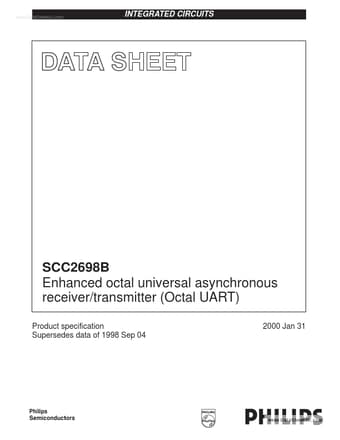

SCC2698B Datasheet Preview — Preview of SCC2698B PDF

Datasheet Details

Part number	SCC2698B
Manufacturer	NXP
File Size	226.23 KB
Description	Enhanced octal universal asynchronous receiver/transmitter Octal UART
Datasheet	SCC2698B_PhilipsSemiconductors.pdf

SCC2698B Product details

Description

The SCC2698B Enhanced Octal Universal Asynchronous Receiver/Transmitter (Octal UART) is a single chip MOS-LSI communications device that provides eight full-duplex asynchronous receiver/transmitter channels in a single package.

Features

Eight full-duplex independent asynchronous receiver/transmitters.
Quadruple buffered receiver data register.
Programmable data format:.
5 to 8 data bits plus parity.
Odd, even, no parity or force parity.
1, 1.5 or 2 stop bits programmable in 1/16-bit increments.
Baud rate for the receiver and transmitter selectable from:.
26 fixed rates: 50 to 38.4K baud Non-standard rates to 115.2K baud.
User-defined rates from.
