TDA4861 - Vertical deflection power amplifier

Product Overview

NXP

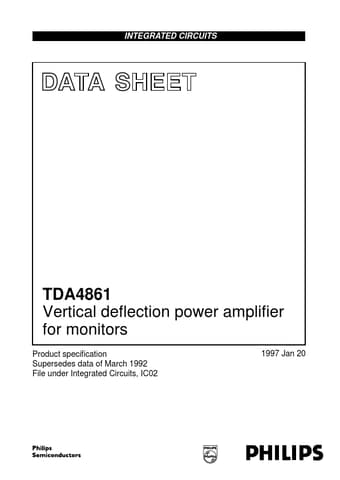

TDA4861 Vertical deflection power amplifier by NXP - Datasheet Preview — Datasheet preview – TDA4861

Datasheet Details

Part number	TDA4861
Manufacturer	NXP
File Size	111.54 KB
Description	Vertical deflection power amplifier
Datasheet	TDA4861 Datasheet
Additional preview pages of the TDA4861 datasheet.

Product details

Description

TDA4861 The TDA4861 is a vertical power amplifier for differential input signals suitable for colour monitor/TV systems with deflection frequencies up to 140 Hz.MAX.30 60 60 10 2.8 +75 V V V UNIT mA mA A °C VP1 0.5 V ORDERING INFORMATION TYPE NUMBER TDA4861 PACKAGE NAME SIL9P DESCRIPTION plastic single in-line power package; 9 leads VERSION SOT131-2 1997 Jan 20 2 Philips Semiconductors Product speciﬁcation Vertical deﬂection power ampliﬁer for monitors BLOCK DIA

Features

Vertical pre-amplifier with differential inputs.
Powerless vertical shift.
Flyback voltage generation suitable for two operating modes (doubling the supply voltage or external supply for the short flyback time, this achieves a minimum of power dissipation).
Vertical output stage with thermal and SOAR protection.
High deflection frequency up to 140 Hz.
High linear sawtooth signal amplification.
Possibility of guarding the deflection.
