TDA4863AJ

Vertical deflection booster

TDA4863AJ Features

* Power amplifier with differential inputs

* Output current up to 3 A (p-p)

* High vertical deflection frequency up to 200 Hz

* High linear sawtooth signal amplification

* Flyback generator:

* TDA4863J: separate adjustable flyback supply voltage up to

TDA4863AJ General Description

The TDA4863J and TDA4863AJ are deflection boosters for use in vertical deflection systems for frame frequencies up to 200 Hz. The TDA4863J needs a separate flyback supply voltage, so the supply voltages are independently adjustable to optimize power consumption and flyback time. For the TDA4863AJ th.

TDA4863AJ Datasheet (105.50 KB)

Preview of TDA4863AJ PDF

Datasheet Details

Part number:

TDA4863AJ

Manufacturer:

NXP ↗

File Size:

105.50 KB

Description:

Vertical deflection booster.

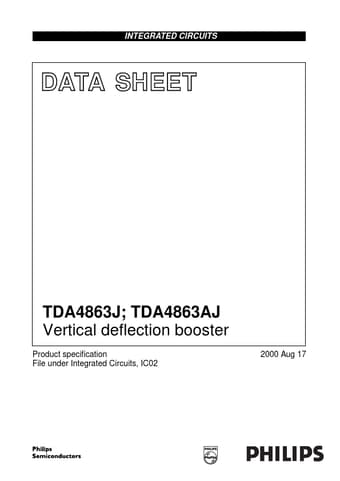

INTEGRATED CIRCUITS DATA SHEET TDA4863J; TDA4863AJ Vertical deflection booster Product speciļ¬cation File under Integrated Circuits, IC02 2000 Aug 17.
