TDA7052AT - 1 W BTL mono audio amplifier

TDA7052AT Description

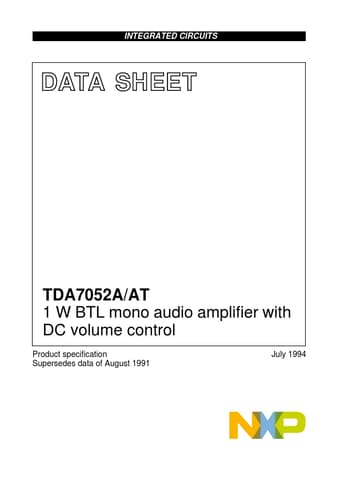

INTEGRATED CIRCUITS DATA SHEET TDA7052A/AT 1 W BTL mono audio amplifier with DC volume control Product specification Supersedes data of August 1991 .
The TDA7052A/AT are mono BTL output amplifiers with DC volume control.

TDA7052AT Features

* DC volume control
* Few external components
* Mute mode
* Thermal protection
* Short-circuit proof
* No switch-on and off clicks
* Good overall stability
* Low power consumption
* Low HF radiation
* ESD protected on al

TDA7052AT Applications

* (single-ended). QUICK REFERENCE DATA SYMBOL VP PO Gv φ IP THD PARAMETERS positive supply voltage range output power TDA7052A TDA7052AT maximum total voltage gain gain control range total quiescent current total harmonic distortion TDA7052A TDA7052AT CONDITIONS RL = 8 Ω; VP = 6 V RL = 16 Ω; VP =
