TDA7052B

Mono BTL audio amplifier

NXP

TDA7052B Features

* DC volume control

* Few external components

* Mute mode

* Thermal protection

* Short-circuit proof

* No switch-on and switch-off clicks

* Good overall stability

* Low power consumption

* Low HF radiation

* ESD protecte

TDA7052B General Description

The TDA7052B and TDA7052BT are 1 W and 0.5 W mono Bridge-Tied Load (BTL) output amplifiers with DC volume control. They have been designed for use in TV and monitors, but are also suitable for use in battery-fed portable recorders and radios. A Missing Current Limiter (MCL) is built in. The MCL circ.

TDA7052B Datasheet (302.10 KB)

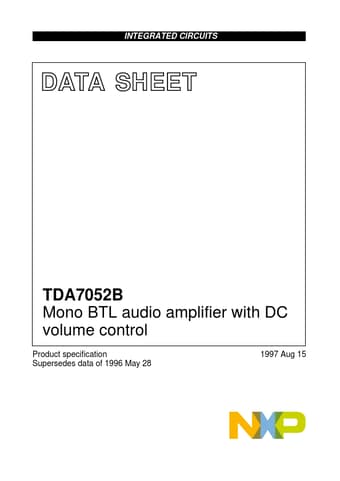

TDA7052B Datasheet Preview — Preview of TDA7052B PDF

Datasheet Details

Part number:

TDA7052B

Manufacturer:

NXP ↗

File Size:

302.10 KB

Description:

Mono btl audio amplifier.
INTEGRATED CIRCUITS DATA SHEET TDA7052B Mono BTL audio amplifier with DC volume control Product specification Supersedes data of 1996 May 28 1997 A.
