TDA8443A

I2C-bus controlled YUV/RGB switch

NXP

TDA8443A Features

* Two RGB/YUV selectable clamped inputs with associated synchronization

* RGB/YUV matrix

* 3-state switching with an OFF-state

* Selectable gain

* I2C-bus or non-I2C-bus mode

* Address selection for 7 devices

* Fast switching. GENERAL DESCRIPTI

TDA8443A General Description

The TDA8443A is a general purpose two-channel switch for YUV or RGB signals. One channel provides matrixing from RGB to YUV, which can be bypassed. The IC is controlled via I2C-bus by seven different addresses or can be used in a non-I2C-bus mode. In the non-I2C-bus mode, control of the circuit is a.

TDA8443A Datasheet (124.28 KB)

TDA8443A Datasheet Preview — Preview of TDA8443A PDF

Datasheet Details

Part number:

TDA8443A

Manufacturer:

NXP ↗

File Size:

124.28 KB

Description:

I2c-bus controlled yuv/rgb switch.

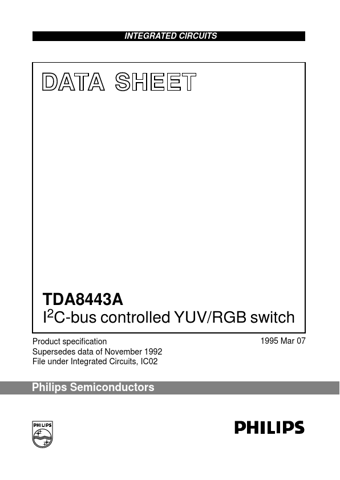

INTEGRATED CIRCUITS DATA SHEET TDA8443A I2C-bus controlled YUV/RGB switch Product speciﬁcation Supersedes data of November 1992 File under Integrate.
