TDA8444

Octuple 6-bit DACs with I2C-bus

TDA8444 Features

* Eight DACs with 6-bit resolution

* Adjustable common output swing

* Push-pull outputs

* Outputs short-circuit protected

* Three programmable slave address bits

* Large supply voltage range

* Low temperature coefficient. GENERAL DESCRIPTION Th

TDA8444 General Description

The interface circuit is a bipolar IC in a DIP16, SO16, or SO20 package made in an I2L-compatible 18 V process. QUICK REFERENCE DATA SYMBOL VCC ICC P VVMAX Vo(DACn) Vo(DACn)(max) Isource(min) Isink(min) PARAMETER supply voltage supply current power dissipation input effective voltage DAC output volt.

TDA8444 Datasheet (116.05 KB)

Preview of TDA8444 PDF

Datasheet Details

Part number:

TDA8444

Manufacturer:

NXP ↗

File Size:

116.05 KB

Description:

Octuple 6-bit dacs with i2c-bus.

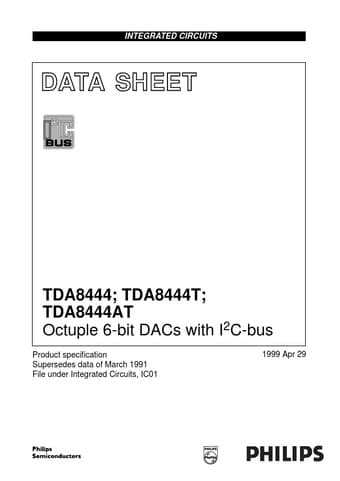

INTEGRATED CIRCUITS DATA SHEET TDA8444; TDA8444T; TDA8444AT Octuple 6-bit DACs with I2C-bus Product speciļ¬cation Supersedes data of March 1991 File .
