TDA9880 - Alignment-free multistandard vision and FM sound IF-PLL demodulator

NXP

📥 Download Datasheet

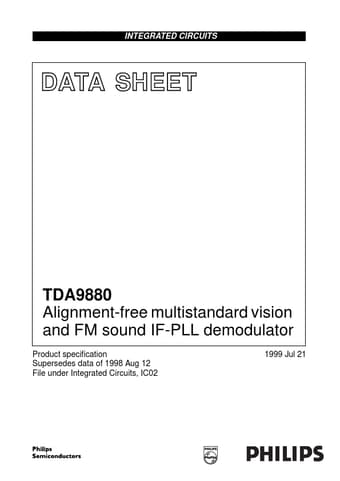

TDA9880 Datasheet Preview — Preview of TDA9880 PDF

Datasheet Details

Part number: TDA9880
Manufacturer: NXP ↗
File Size: 195.05 KB
Datasheet: TDA9880_PhilipsSemiconductors.pdf
Description: Alignment-free multistandard vision and FM sound IF-PLL demodulator

TDA9880 Product details

Description

plastic shrink dual in-line package; 20 leads (300 mil) plastic small outline package; 20 leads; body width 7.5 mm TDA9880 Precise fully digital Automatic Frequency Control (AFC) detector with 4-bit digital-to-analog converter Fully integrated sound carrier trap for 4.5, 5.5, 6.0 and 6.5 MHz, controlled by reference signal Alignment-free selective FM-PLL demodulator with high linearity and low noise Digital frequency control, sound carrier frequencies 4.

Features

5 V supply voltage.
Gain controlled wide-band Vision Intermediate Frequency (VIF) amplifier (AC-coupled).
True synchronous demodulation with active carrier regeneration (very linear demodulation, good intermodulation figures, reduced harmonics and excellent pulse response).
Fully integrated VIF Voltage Controlled Oscillator (VCO), alignment-free.
Digital acquisition help, VIF frequencies of 38.0, 38.9, 45.75 and 58.75 MHz.
4 MHz reference fr.
