TDA9886, TDA, I2C-bus controlled single and multistandard alignment-free IF-PLL demodulators

TDA9885; TDA9886 I2C-bus controlled single and multistandard alignment-free IF-PLL demodulators Rev.03 * 16 December 2008 Product data she.
The TDA9885 is an alignment-free multistandard (PAL and NTSC) vision and sound IF signal Phase-Locked Loop (PLL) demodulator for negative modulation o.

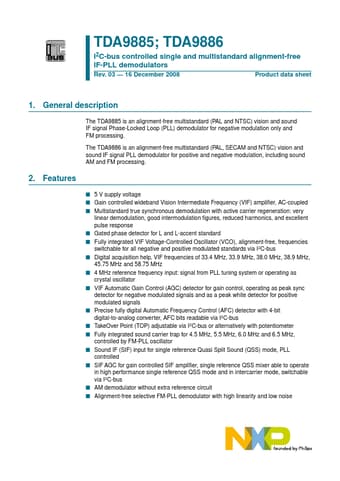

datasheet Preview Page 1 from Datasheet4u.com

TDA-9886.pdf

TDA9886 Datasheet Preview — This datasheet PDF includes multiple part numbers: TDA9886, TDA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TDA9886, TDA

Manufacturer:

NXP ↗

File Size:

261.11 KB

Description:

I2C-bus controlled single and multistandard alignment-free IF-PLL demodulators

Note:

This datasheet PDF includes multiple part numbers: TDA9886, TDA.
Please refer to the document for exact specifications by model.

Features

* I 5 V supply voltage I Gain controlled wideband Vision Intermediate Frequency (VIF) ampliﬁer, AC-coupled I Multistandard true synchronous demodulation with active carrier regeneration: very linear demodulation, good intermodulation ﬁgures, reduced harmonics, and excellent pulse response I Gated phas

Applications

* I TV, VTR, PC, and STB applications 4. Quick reference data Table 1. Quick reference data Symbol Parameter VP supply voltage IP supply current τP time constant (R × C) for network at pin VP Video part Vi(VIF)(rms) VIF input voltage sensitivity (RMS value) GVIF(cr) fVIF control range VIF gain v
