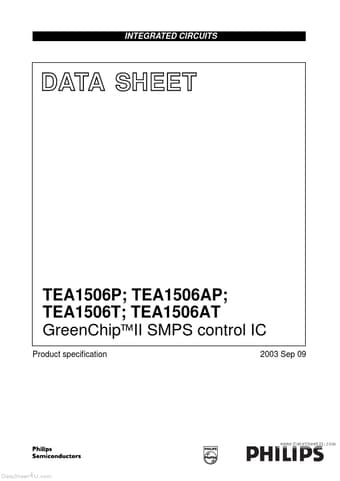

TEA1506AP Datasheet - NXP

TEA1506AP GreenChip SMPS controller

is the second generation of green The Switched Mode Power Supply (SMPS) control ICs. A high level of integration leads to a cost effective power supply with a low number of external components. (1) GreenChip is a trademark of Koninklijke Philips Electronics N.V. TEA1506P; TEA1506AP; TEA1506T; TEA15.

TEA1506AP Features

* Distinctive features

* Universal mains supply operation (70 to 276 V AC)

* High level of integration; giving a low external component count. Green features

* Valley or zero voltage switching for minimum switching losses

* Efficient quasi-resonant operation at high pow

TEA1506AP Datasheet (393.32 KB)
